ADSL/ADSL2/ADSL2+ Modes
ADSL Standards :
- Full-rate ANSI T1.413 Issue 2
- ITU-T G.992.1(G.DMT)
- ITU-T G.992.2(G.Lite)
- ITU-T G.994.1 (G.hs)
- ITU-T G.995.1
- ITU-T G.996.1
- ITU-T G.997.1
- ITU-T K.2.1
ADSL2 Standards :
- ITU-T G.992.3 (G.dmt.bis)
- ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards :
- ITU-T G.992.5
IEEE / Wireless Standards
IEEE 802.3, 802.3u
Quality of Service
QoS Remarking based on IPP/ToS, DSCP and 802.1p
Port Forwarding
Virtual server, DMZ, ACL(Access Control List)
VPN Pass-Through
PPTP, L2TP, IPSec Pass-through
ATM / PPP Protocols
ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs
Advanced Features
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS
IGMP Multicast, UPnP
Security
NAT Firewall, MAC /IP /Application/URL Filtering
Management
Web Based Configuration(HTTP), Remote management, Telnet
management, SNMP v1/2c, SNMP over EOC, Web Based Firmware
Upgrade, Diagnostic Tools

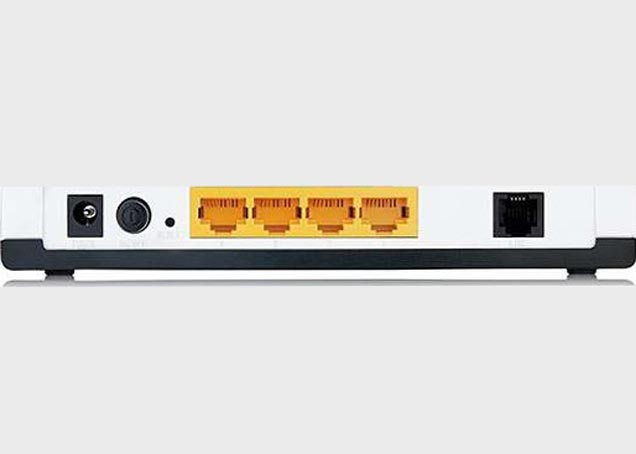

Interface
- 4 x 10/100Mbps RJ45 Ports
- 1 x RJ11 Port
Certification
CE, FCC, RoHS
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
